Quad-core ARM Cortex-A53 Processer, 5Tops Edge Inference Capabilities

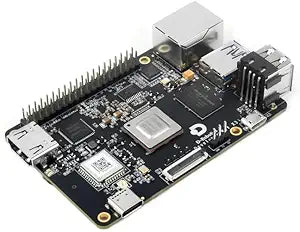

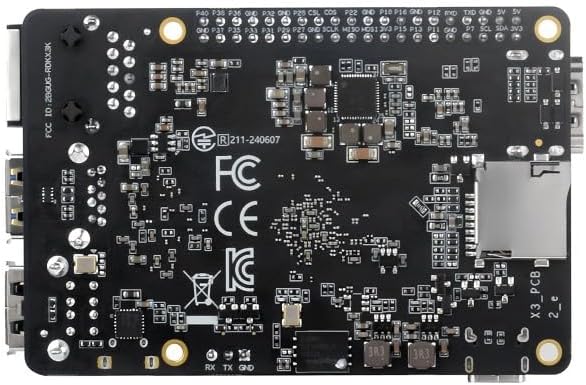

RDK X3 Development Board
The RDK X3 series encompasses the RDK X3 and RDK X3 Module, delivering exceptional 5Tops edge inference capabilities. Their standardized dimensions and interfaces seamlessly integrate with generic products, empowering developers to rapidly deploy intelligent products and robotic solutions.
Specifications
| CPU | Quad-core ARM® Cortex® A53@1.5G |
|---|---|
| BPU | Dual-core Bernoulli Arch, 5Tops |
| RAM | 2GB/4GB LPDDR4 RAM |
| Storage | TF card slot |
| Multimedia | H.265 (HEVC) Encoding and Decoding Main profile, L5.14K@60fps, JPEG Encoding and Decoding 16Mpixels |
| Sensor | MIPI CSI 2lane x 2 |
| USB Host | USB Type-A 3.0 x 1, USB Type-A 2.0 x 2 |
| USB Device | Mirco USB 2.0 x 1 |
| Display | 1 x HDMI1.4 (up to 1080p60) |
| Wireless network | Wi-Fi 2.4/5GHz Bluetooth 4.2 |
| Wired network | RJ45 interface |
| Others | 1 x Debug UART, GPIO & I2C & UART & SPI & I2S & PWM (40PIN) x 2 |
| Power input | 5V 3A |
| System support | Ubuntu 20.04/22.04 |
