EDU:BIT Training & Project Kit for micro:bit (without micro:bit)

  • HK$272.00
  • Save HK$32


Pre-order >> Delivery in September 2020

This beginner-friendly micro:bit kit is specially designed to encourage kids to explore STEAM and learn coding.

Note: This kit DOES NOT include micro:bit board


You can easily program EDU:BIT using open-sourced Microsoft MakeCode Editor. Just add EDU:BIT MakeCode Extension and you’re good to go. If you’re a beginner, you can start with the block programming mode; simply drag, drop and snap the coding blocks together. For more advanced users, you can easily switch into JavaScript or Python mode on MakeCode Editor for text-based programming.

New to coding? Don’t worry. This kit comes with a booklet covering 10+1 hands-on coding lessons, which have been creatively structured to introduce programming basics in a fun and engaging manner. Each chapter features a classic childhood game such as Rock Paper Scissors, Snakes and Ladders, Twister, and Simon Says. Follow the step-by-step guide to build the games and then have fun playing with your friends! *Game accessories are provided in this kit.


At the end of each chapter, there is a challenge which requires you to apply what you’ve learned to build a useful application for your classroom. Give it a try and if you’re stuck, we’re always here to help you. You can go to our online Resource Hub for sample codes and extra resources.

SPECIAL FEATURES:

Start having fun with EDU:BIT right out of the box. Start coding right away and see your board lights up and plays melody with the press of a button. No wiring required when used as a training kit.


Cannot control servo motor and play music at the same time on your micro:bit? Servo motor refuses to move correctly? Worry no more! EDU:BIT takes care of these issues with its dedicated controller and power supply. It can even support up to 3 servo motors and 2 DC motors to actuate any creative projects you will build.


Each feature and its associated micro:bit IO pin is clearly labeled on the board for easy reference. In addition, indicator LEDs are built in on EDU:BIT to ease troubleshooting for both digital and analog IO pins.

Ready to build your own projects? You can break off the modules on EDU:BIT board for more flexibility in your project design. Plug-and-play cables are provided for you to connect the broken off Bits to the main board.

Last but not least, we even provide a special space on EDU:BIT for you to write your name. Get yours today!

EDU:BIT Specifications:

  • 1x Piezo buzzer with audio jack
  • 1x Sound sensor
  • 1x Potentiometer
  • 1x IR sensor
  • 4x Programmable RGB LEDs
  • 3x Big LEDs (traffic light module - red, yellow green)
  • 2x Push buttons
  • 3x ports for servo motors
  • 2x ports for DC motors
  • 1x port for I2C Interface (3.3V)
  • Dimension:  157.50 mm x 124.50 mm x 19.00 mm

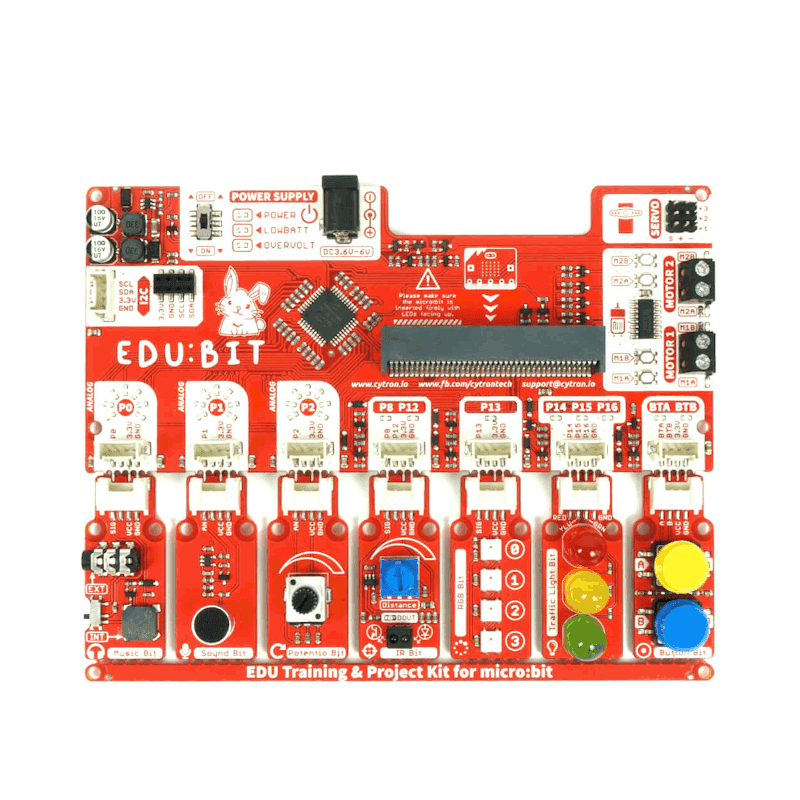

Image of EDU:BIT with labels

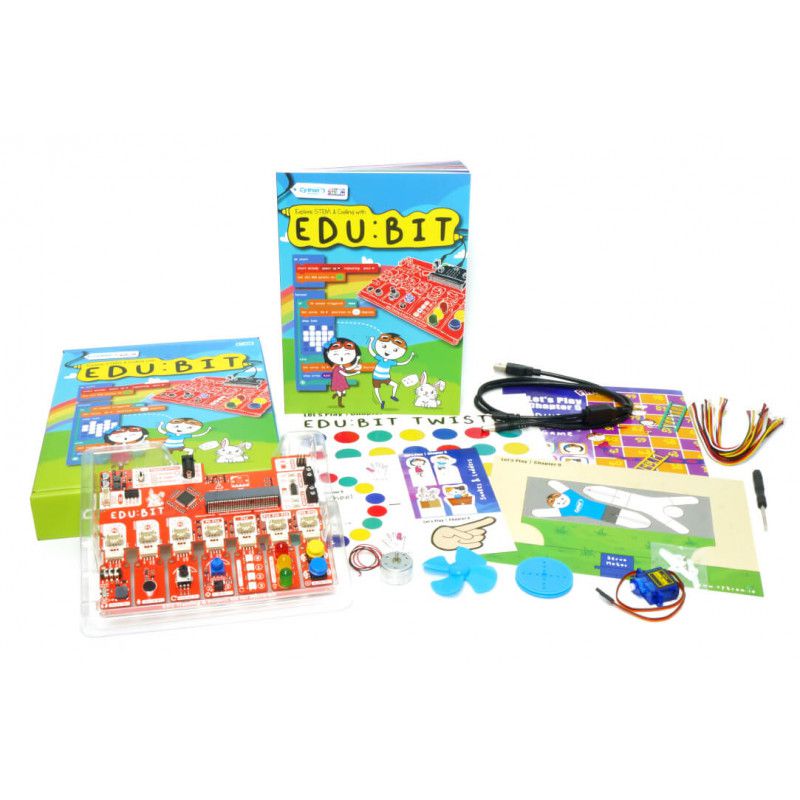

What’s included in this kit?

  • 1x EDU:BIT board
  • 1x BBC micro:bit board.
  • 1x Step-by-step Guide Book
  • 1x USB power and data cable
  • 2x Game maps
  • 2x Game accessories
  • 7x Grove cables
  • 1x Servo motor
  • 1x DC motor
  • 1x Pulley wheel
  • 1x Fan blade
