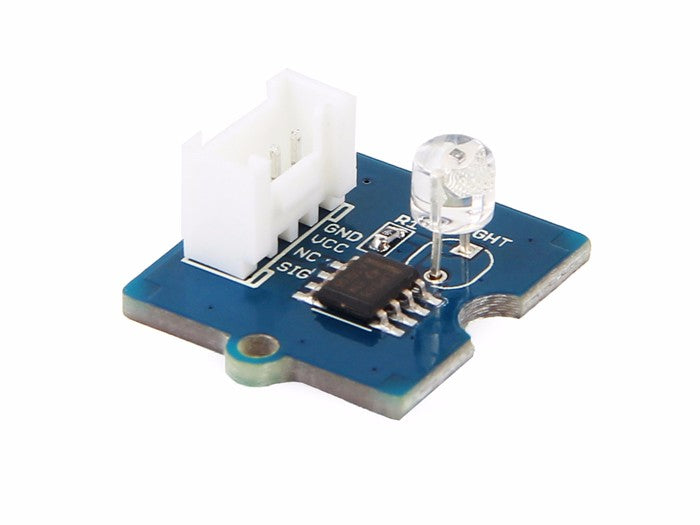

Grove - Light Sensor v1.2

HK$98.00

As an updated version of Grove - Light Sensor 1.0, the Grove - Light Sensor v1.2 is also aimed at measuring light levels, however with higher reliability and sensibility. It is an analog module and output various electrical signals which can be converted to different ranges (It depends on the Analog-to-Digital-Converter on your controller board. For example, it can output 0-255 for an 8-bit ADC). It integrates a high-sensitive and reliable phototriode, and just like other grove modules, it is interfaced with Grove port which can save you a lot work in wiring.



Features

  • Easy to use since it is interfaced with Grove port.

  • High reliability and sensibility.

  • Small footprint

  • Recognize wider spectrum.



Documents

  • For libraries and documents, please visit our Wiki page.

  • For technical discussion, please come to our Forum.

  • For projects that you would like to share with the community, please visit Recipe.

Technical Details

Dimensions 20mm x 20mm x 18mm
Weight G.W 5g    N.W 4g
Battery Exclude
Operating voltage(V) 3-5 V
Operating current(mA) 0.5-3 mA
Response time 20 ~ 30 milliseconds
Peak Wavelength 540 nm
Phototriode GL5528(datasheet)

Part List

Grove - Light Sensor V1.2 1
Grove Cable 1
