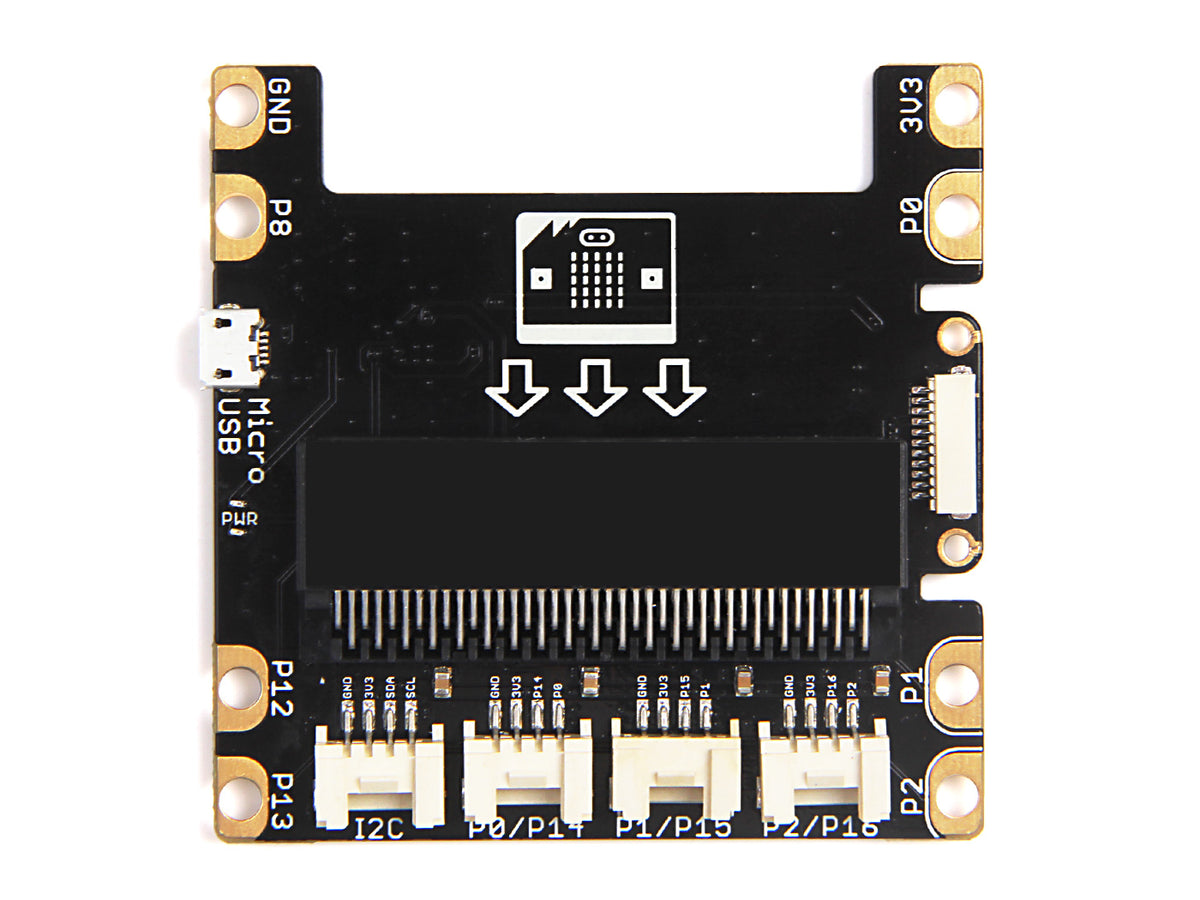

Grove Shield for micro:bit

Regular price $98.00

As an extension board, the grove shield for micro:bit integrated 4 grove connectors on board and reserves extra 4 pin outs if users need more grove connector. Apart from that, we have also reserved some pinout that has special functions such as P0, P1, P2 that  have touch function, so that you can build project like fruit piano. Or you can simple use crocodile clip to connect the pinout, just like what you can do on micro:bit. Thirdly, with the on-board micro USB interface, you can power micro:bit from the grove shield.



If you don’t know how to get started with this shield, have no idea which grove modules to use, don’t worry, we have already prepared a Grove Inventor Kit for micro:bit which contains this grove shield and other 8 groves that can let you getting getting started.


Features

  • 4 Grove ports to cover different interfaces

  • Edge connectors for crocodile clip and 4mm banana plugs

  • On-board USB port to power up your micro:bit

Technical Details

Weight G.W 27.5g
Battery Exclude
DC Interfaces Micro USB x1
Grove Interface P0/P14,P1/P15,P2/P16,I2C
Grove ZERO Interface Grove ZERO x1
Logic Interface 3V3/P0/P1/P2/P8/P12/P13/GND
