M5Stick

Regular price $128.00

Description

M5Stick is a mini esp32 development board including 1.3’ OLED Screen(64x128), led, button, buzzer, IR Transmitter, 80mAh-Battery and optional MEMS(MPU9250). Usually, you can put it on your wrist with WATCH BELT or band it on the wall with WALL or BRICK.

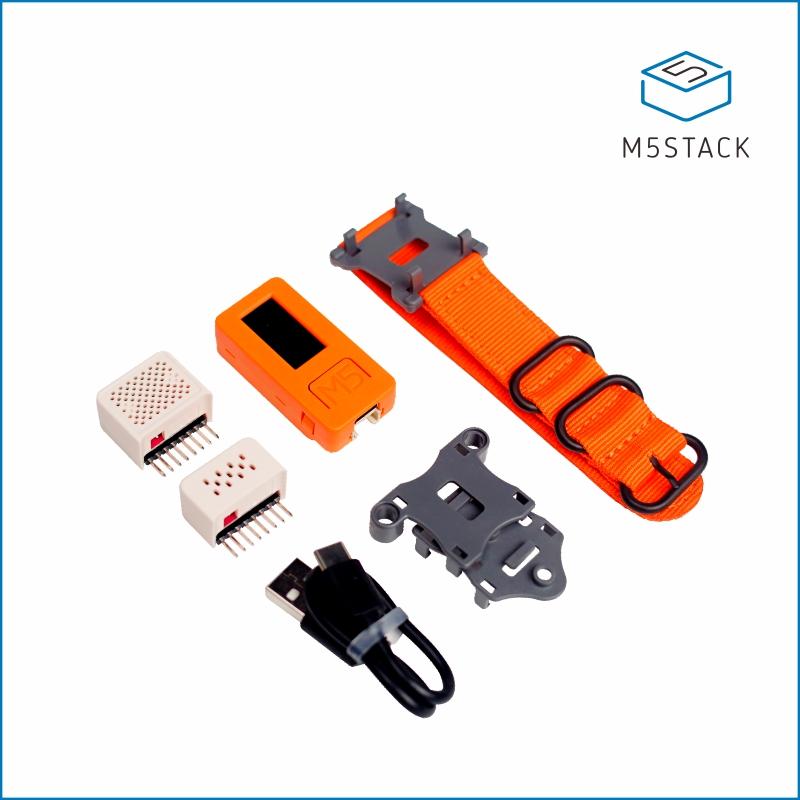

There are two version of it. White version does not contain MPU9250, gray version contains MPU9250 and some accessories(likes WATCH BELT, WALL and BRICK).

Feature

  • Programming Support: Arduino, UiFlow(Blockly, MicroPython)
  • Wearable
  • Gray version: MEMS(MPU9250)

PinMap

gray_04

Blue LED&BUTTON&BUZZER&IR Transmitter

ESP32 Chip GPIO17 GPIO19 GPIO26 GPIO35
IR Transmitter Transmitter Pin
Blue LED LED Pin
BUZZER BUZZER Pin
BUTTON BUTTON Pin

OLED

ESP32 Chip GPIO14 GPIO27 GPIO33
OLED CS DC RST

GROVE Interface

ESP32 Chip GPIO13 GPIO25 5V GND
GROVE Interface SCL SDA 5V GND

Gray Version:

ESP32 Chip GPIO22 GPIO21
9-axis attitude sensor(MPU9250) SCL SDA
