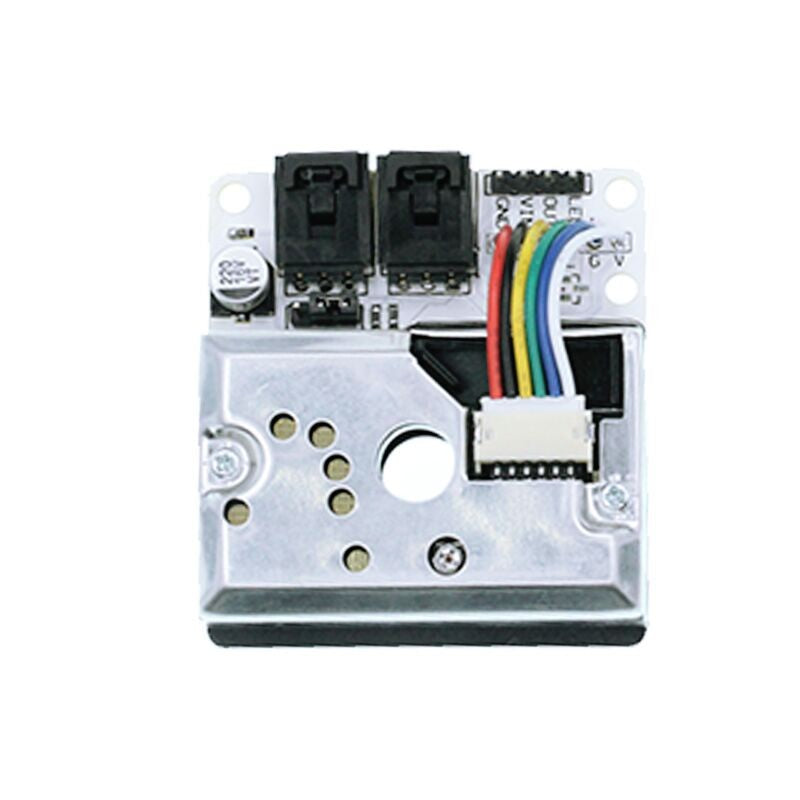

Octopus Dust Sensor Detector Module with Sharp GP2Y1010AU0F

Octopus Dust Sensor Detector Module with Sharp GP2Y1010AU0F adopts Sharp optical dust sensor(GP2Y1010AU0F). It is used to detect the density of  dust particle with diameter beyond 0.8μm such as cigarette smoke.

Features:

•  1. Low power consumption;

• 2. Analog output;

• 3. Linear relatioship between voltage and dust density;

• 4. Built-in voltage boosting circuit,suitable for input voltage with wider range.

Product Parameters:

• Sensitivity: 0.5V/(100μg/m3)

• Effective Range: 500μg/m3

• Working Voltage: 2.5V~5.5V

• Working Current: 20mA(max)

• Working Temperature: -10℃~65℃

• Storage Temperature: -20℃~80℃

• Life Span: 5 year

• Product Dimension: 63.2mm×41.3mm×21.1mm

• Fixed Hole Size: 2.0mm

• Vent Hole Size: 9.0mm

Application:

•  1. Detect dust concentration in the air.

• 2. Air purifier, air quality monitor.
