Raspberry Pi Pico H

HK$48.00

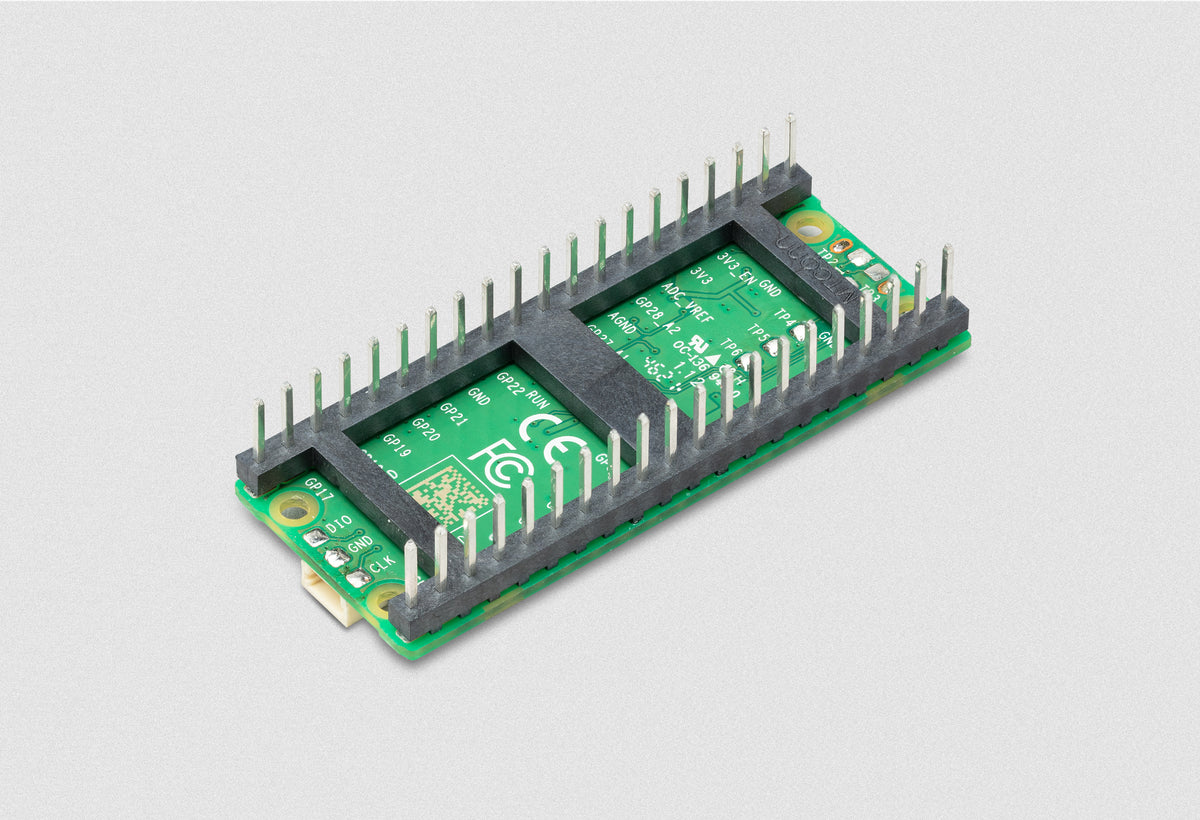

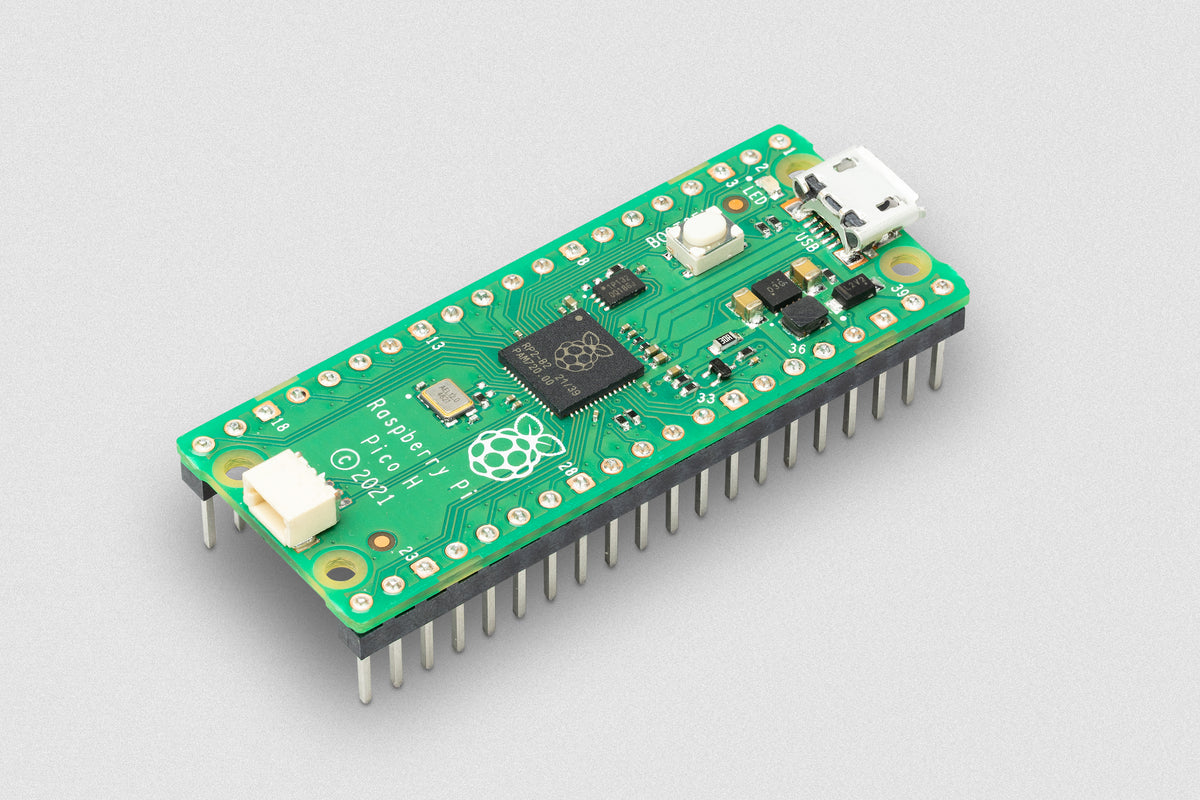

Raspberry Pi Pico H are fitted with a pre-soldered 40-way header and 3-pin JTAG connector, for greater ease of use in hobbyist and industrial applications.

Board Specifications

Raspberry Pi Pico is a low-cost, high-performance microcontroller board with flexible digital interfaces. Key features include:

  • RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
  • Dual-core ARM Cortex M0+ processor, flexible clock running up to 133 MHz
  • 264kB of SRAM, and 2MB of on-board Flash memory
  • Castellated module allows soldering direct to carrier boards
  • USB 1.1 Host and Device support
  • Low-power sleep and dormant modes
  • Drag & drop programming using mass storage over USB
  • 26 multi-function GPIO pins
  • 2×SPI, 2×I2C, 2×UART, 3×12-bit ADC, 16×controllable PWM channels
  • Accurate clock and timer on-chip
  • Temperature sensor
  • Accelerated floating point libraries on-chip
  • 8×Programmable IO (PIO) state machines for custom peripheral support



http://www.raspberrypi.org/documentation/pico/getting-started
